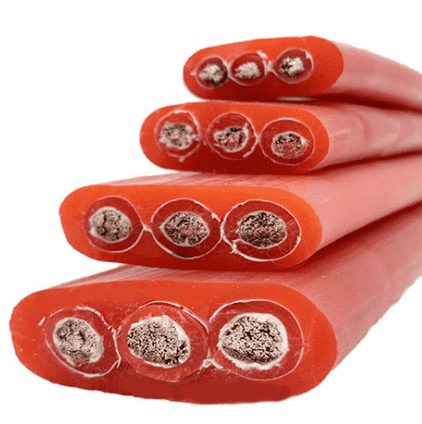

???????????????? YGCB、YGVFCB、YFGCB 硅橡膠護套扁平軟電纜
????YGCB、YGVFCB、YFGCB 硅橡膠護套扁平軟電纜執行標準：?Q/HX18? 使用特性：?額定電壓：0.6/1kV 工作溫度：-60～＋180℃
???YGCB、YGVFCB、YFGCB 硅橡膠護套扁平軟電纜具體規格可根據客戶需要銷售，若長距離懸空或其他原因承受較大的拉力，可在其間加入加強鋼絲，在電纜型號后加入－nT（n表示鋼絲的根數，根據電纜的寬度決定）。
YGCB、YGVFCB、YFGCB 硅橡膠護套扁平軟電纜規格：見表
| 型號 | 額定電壓（U0/U）（V） | 芯數 | 標稱截面（mm2） |
| YGZB、YGVFZB | 450/750 | 2、3、4、5、7、 | 0.75-2.5 |
| YGCB、YGVFCB、YFGCB | 600/1000 | 2、3、4、5 | 4-240 |
YGCB、YGVFCB、YFGCB 硅橡膠護套扁平軟電纜型號及M稱：見表
| 型號 | 額定電壓 | M稱 |
| YGZB | 450/750 | 中型硅橡膠J緣高溫、防腐、耐油扁平電纜 |
| YGVFZB | 450/750 | 中型硅橡膠J緣護套高溫、防腐、耐油扁平電纜 |
| YGCB | 600/1000 | 重型硅橡膠J緣高溫、防腐、耐油扁平電纜 |
| YGVFCB | 600/1000 | 重型硅橡膠J緣護套高溫、防腐、耐油扁平電纜 |
| YFGCB | 600/1000 | 重型氟塑料J緣硅橡膠J緣高溫、防腐、耐油扁平電纜 |
硅橡膠護套扁電纜結構參數:見表
| 序號 | 芯數×標稱截面（mm2） | 根數/直徑 | 電纜大外徑 | 計算重量（kg/Km） | ||||
| YGZB YGVFCB |
YGCB YGVFCB |
YGCB | YGZB YGVFCB |
YGCB YGVFCB |
YGCB | |||
| 1 | 2×0.75 | 24/0.20 | 4.7×7.1 | - | - | 59 | - | - |
| 2 | 2×1.0 | 32/0.20 | 4.9×7.5 | - | - | 70 | - | - |
| 3 | 2×1.5 | 30/0.25 | 5.4×8.3 | - | - | 89 | - | - |
| 4 | 2×2.5 | 49/0.25 | 6.3×9.9 | - | - | 126 | - | - |
| 5 | 3×0.75 | 24/0.20 | 4.7×9.4 | - | - | 74 | - | - |
| 6 | 3×1.0 | 32/0.20 | 4.9×10.0 | - | - | 89 | - | - |
| 7 | 3×1.5 | 30/0.25 | 5.6×11.5 | - | - | 120 | - | - |
| 8 | 3×2.5 | 49/0.25 | 6.5×13.8 | - | - | 171 | - | - |
| 9 | 4×0.75 | 24/0.20 | 4.7×11.8 | - | - | 91 | - | - |
| 10 | 4×1.0 | 32/0.20 | 4.9×12.6 | - | - | 110 | - | - |
| 11 | 4×1.5 | 30/0.25 | 5.6×14.5 | - | - | 149 | - | - |
| 12 | 4×2.5 | 49/0.25 | 6.5×17.4 | - | - | 219 | - | - |
| 13 | 5×0.75 | 24/0.20 | 4.9×14.3 | - | - | 113 | - | - |
| 14 | 5×1.0 | 32/0.20 | 5.1×14.3 | - | - | 138 | - | - |
| 15 | 5×1.5 | 30/0.25 | 6.0×17.9 | - | - | 191 | - | - |
| 16 | 5×2.5 | 49/0.25 | 6.7×12.3 | - | - | 269 | - | - |
| 17 | 7×0.75 | 24/0.20 | 4.9×19.0 | - | - | 143 | - | - |
| 18 | 7×1.0 | 32/0.20 | 5.3×21.4 | - | - | 177 | - | - |
| 19 | 7×1.5 | 30/0.25 | 6.0×23.8 | - | - | 245 | - | - |
| 20 | 7×2.5 | 49/0.25 | 7.9×28.8 | - | - | 360 | - | - |
| 21 | 2×4 | 56/0.30 | - | 7.8×12.4 | 7.4×11.6 | - | 183 | 186 |
| 22 | 2×6 | 84/0.30 | - | 8.2×14.8 | 7.8×14.0 | - | 255 | 260 |
| 23 | 2×10 | 84/0.40 | - | 11.7×19.0 | 11.1×18.2 | - | 422 | 431 |
| 24 | 2×16 | 126/0.40 | - | 13.3×22.6 | 12.9×21.6 | - | 527 | 537 |
| 25 | 2×25 | 196/0.40 | - | 16.9×28.2 | 16.5×27.2 | - | 871 | 897 |
| 26 | 2×35 | 276/0.40 | - | 18.3×30.6 | 17.9×29.6 | - | 1153 | 1188 |
| 27 | 2×50 | 396/0.40 | - | 21.7×36.4 | 21.1×35.4 | - | 1599 | 1647 |
| 28 | 2×70 | 360/0.50 | - | 24.6×41.1 | 23.8×40.1 | - | 2183 | 2249 |
| 29 | 2×95 | 475/0.50 | - | 28.1×47.1 | 27.3×46.1 | - | 2859 | 2945 |
| 30 | 2×4 | 56/0.30 | - | 7.8×17.4 | 7.41×16.2 | - | 237 | 244 |
| 31 | 2×6 | 84/0.30 | - | 8.2×20.8 | 7.8×19.6 | - | 349 | 359 |
| 32 | 3×10 | 84/0.40 | - | 11.7×26.3 | 11.1×25.1 | - | 558 | 575 |
| 33 | 3×16 | 126/0.40 | - | 13.3×31.5 | 12.7×30.3 | - | 773 | 760 |
| 34 | 3×25 | 196/0.40 | - | 16.9×39.5 | 16.1×38.3 | - | 1173 | 1208 |
| 35 | 3×35 | 276/0.40 | - | 18.3×42.9 | 17.6×41.7 | - | 1565 | 1612 |
| 36 | 3×50 | 396/0.40 | - | 21.7×48.1 | 21.1×46.9 | - | 2184 | 2250 |
| 37 | 3×70 | 360/0.50 | - | 24.6×57.7 | 23.8×56.5 | - | 2996 | 3086 |
| 38 | 3×95 | 475/0.50 | - | 28.1×66.2 | 27.3×65.0 | - | 3929 | 4047 |
| 39 | 3×4 | 56/0.30 | - | 8.2×22.0 | 7.4×20.4 | - | 314 | 324 |
| 40 | 3×6 | 84/0.30 | - | 9.6×26.4 | 8.8×24.8 | - | 440 | 453 |
| 41 | 4×10 | 84/0.40 | - | 11.7×34.8 | 11.1×33.2 | - | 734 | 756 |
| 42 | 4×16 | 126/0.40 | - | 14.3×41.2 | 13.7×39.6 | - | 1045 | 1076 |
| 43 | 4×25 | 196/0.40 | - | 17.3×51.2 | 16.5×49.6 | - | 1542 | 1588 |
| 44 | 4×35 | 276/0.40 | - | 18.7×58.3 | 17.9×56.7 | - | 2059 | 2121 |
| 45 | 4×50 | 396/0.40 | - | 22.5×66.4 | 21.7×64.8 | - | 2891 | 2978 |
| 46 | 4×4 | 56/0.30 | - | 8.2×26.6 | 7.4×24.6 | - | 381 | 392 |
| 47 | 4×6 | 84/0.30 | - | 10.0×32.4 | 8.2×30.4 | - | 556 | 573 |
| 48 | 5×10 | 84/0.40 | - | 12.5×41.7 | 11.8×39.7 | - | 923 | 951 |
| 49 | 5×16 | 126/0.40 | - | 14.9×50.5 | 14.1×48.5 | - | 1307 | 1346 |
| 50 | 5×25 | 196/0.40 | - | 17.3×63.5 | 16.5×61.5 | - | 1987 | 2046 ? |
